12″ Powered Coaxial High-Performance PA Loudspeaker with Bluetooth & App Control

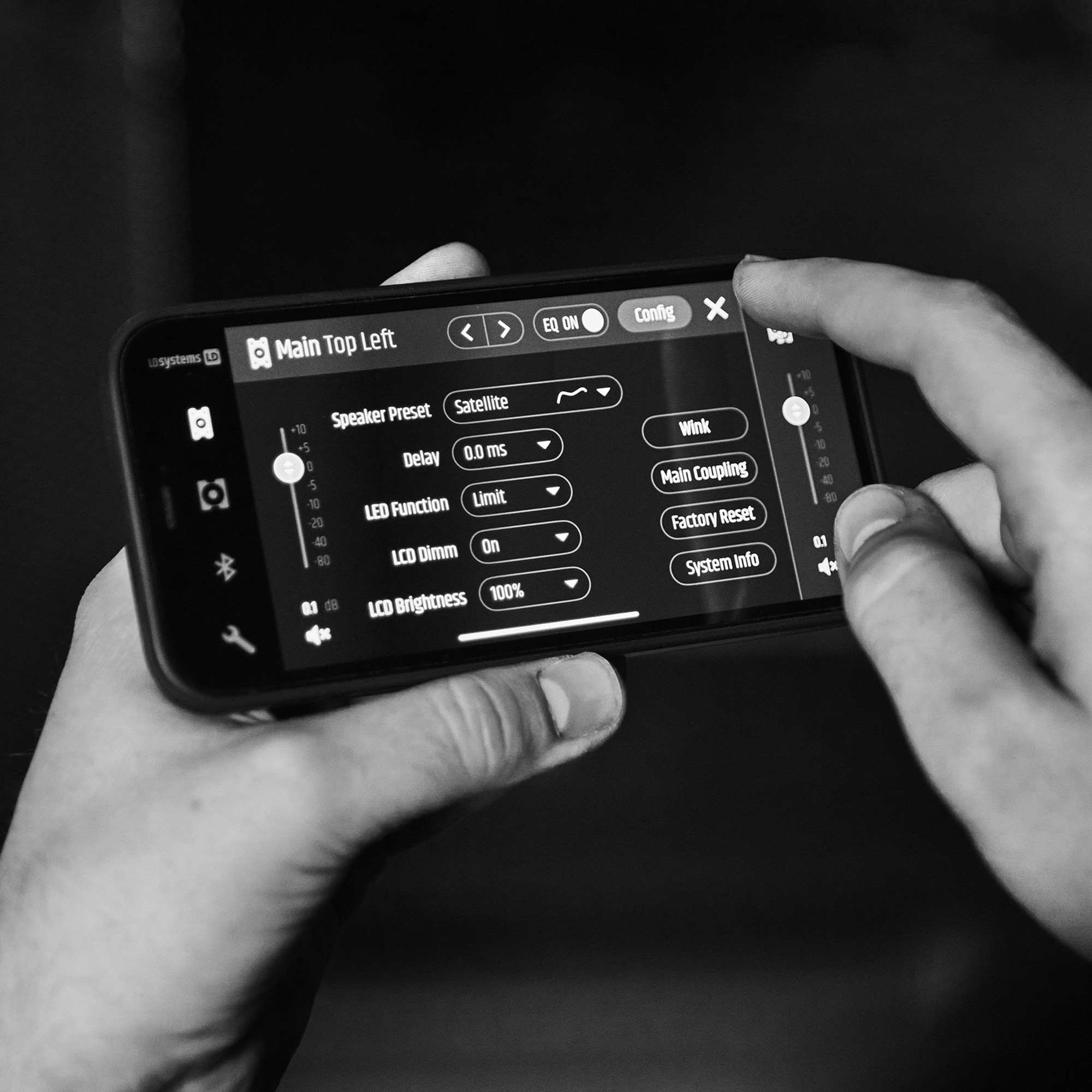

Overview The LD Systems ICOA® PRO 12 A is a high-power 12″ active coaxial PA loudspeaker engineered for professional live sound, monitoring, and permanent installation. Combining true point-source coaxial design, advanced DSP, and modern Bluetooth control, the ICOA PRO 12 A delivers exceptional clarity, power, and flexibility in a rugged, tour-ready enclosure. With 133 dB max SPL, 1000 W RMS Class-D amplification, and precision horn dispersion, this speaker is equally at home as a front-of-house loudspeaker, stage monitor, satellite system, or fixed installation solution. Key Features True coaxial 2-way design for accurate point-source sound reproduction 12″ woofer with 3″ voice coil and 3″ titanium HF compression driver 133 dB max SPL with 1000 W RMS / 2000 W peak power Large rotatable BEM-optimised horn with 90° × 50° dispersion SysCore® DSP with FIR/IIR filters for distortion-free performance Bluetooth® 5.1 with TWS stereo streaming Free ICOA PRO control app (iOS & Android) 4-band parametric EQ, delay and application presets EasyMount® compatible plus 6 × M10 rigging points Dual-tilt 35 mm pole mount (0° / 5°) Ultra-robust ABS cabinet with internal steel reinforcement Professional Sound Performance At the heart of the ICOA PRO 12 A is a true coaxial loudspeaker system using a common motor design. This ensures exceptional phase coherence, precise imaging, and natural sound reproduction across the entire frequency range. The BEM-optimised rotatable horn provides consistent dispersion while extending horn loading deep into the midrange, allowing sound energy to be focused exactly where it’s needed — especially beneficial in acoustically challenging environments. Flow-optimised bass reflex ports deliver a solid low-frequency response down to 50 Hz, making the ICOA PRO 12 A a powerful full-range solution without requiring a subwoofer for many applications. Advanced DSP & Control The integrated SysCore® DSP ensures maximum audio quality and operational safety, even at high output levels. Features include: FIR/IIR crossover filtering Multiband limiters Input and master EQ Delay alignment Low-latency monitor preset Control is available directly from the onboard colour display with single-knob navigation, or wirelessly via the ICOA PRO app, allowing fast setup and remote adjustment from smartphones or tablets. Connectivity & Streaming 2 × Line/Mic combo inputs with individual gain control XLR mono mix output for daisy-chaining or system expansion Bluetooth® 5.1 with True Wireless Stereo (TWS) App-based pairing supports stereo setups with two tops and up to four subs Flexible Mounting & Durability Designed for real-world use, the ICOA PRO 12 A features: 6 × M10 flying points for permanent installations EasyMount® truss compatibility for tool-free mounting 35 mm pole mount with selectable tilt angles 50° monitor angle for stage monitoring Ultra-robust ABS enclosure with internal steel construction Shock-resistant steel grille Four ergonomic carry handles Optional padded, water-repellent protective covers are available for transport and outdoor use. Technical Specifications General Type: Active PA loudspeaker System: 2-way coaxial (Common Motor Design) Amplifier class: Class D RMS power: 1000 W Peak power: 2000 W Audio Performance Max SPL (pink noise): 133 dB Max SPL (sine burst): 127 dB Frequency response (-10 dB): 50 Hz – 20 kHz Crossover frequency: 800 Hz Dispersion: 90° (horizontal) × 50° (vertical) Monitor angle: 50° Drivers LF driver: 12″ woofer, 3″ voice coil HF driver: 3″ titanium compression driver DSP & Protection FIR/IIR filters Multiband limiter Thermal, short-circuit & DC protection Connectivity Inputs: 2 × Line/Mic (XLR/TRS combo) Outputs: XLR mono mix out Bluetooth: Version 5.1 (TWS supported) Cabinet & Mounting Housing: ABS with steel reinforcement Rigging: 6 × M10 Pole mount: 35 mm, dual tilt (0° / 5°) Colour: Black Ideal Applications Live sound & DJ systems Stage monitoring Corporate AV & events Houses of worship Clubs & venues Permanent installations
