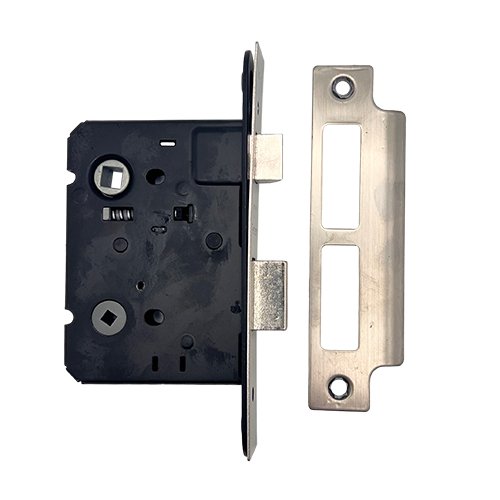

G8024 Horizontal Bathroom Mortice Lock

Horizontal bathroom mortice lock for use on wooden hinged doors. CE Marked door lock Fire rated to BS EN 1634-1:2000 & Performance rated to BS EN 12209. Latchbolt operated by knob from either side Deadbolt operated by turn from either side. Supplied with striker plate and fixing screws. Finishes stainless steel (SS) or satin brass (SB). Other finishes available. Operation: Latchbolt operated by knob from either side Deadbolt operated by turn from either side Case: Pierced to accept 38mm centre horizontally opposed bolt through fixing furniture Striker Plate: Type B Latchbolt: Brass, reversible. Projection 12mm Deadbolt: Brass, Throw 14mm Latchbolt Follower: Brass, to suit 8mm square spindle. Two-way action Deadbolt Follower: Brass, to suit 5mm square spindle Rebate Units To Suit: G3057-13mm G3058-19mm G3059-25mm Box: DUSTBOX1 – Sold Separately A Lock Case: 127mm B Backset: 45mm C Centres: 57mm
