SB560222AA Fireye Flame Safeguard Control

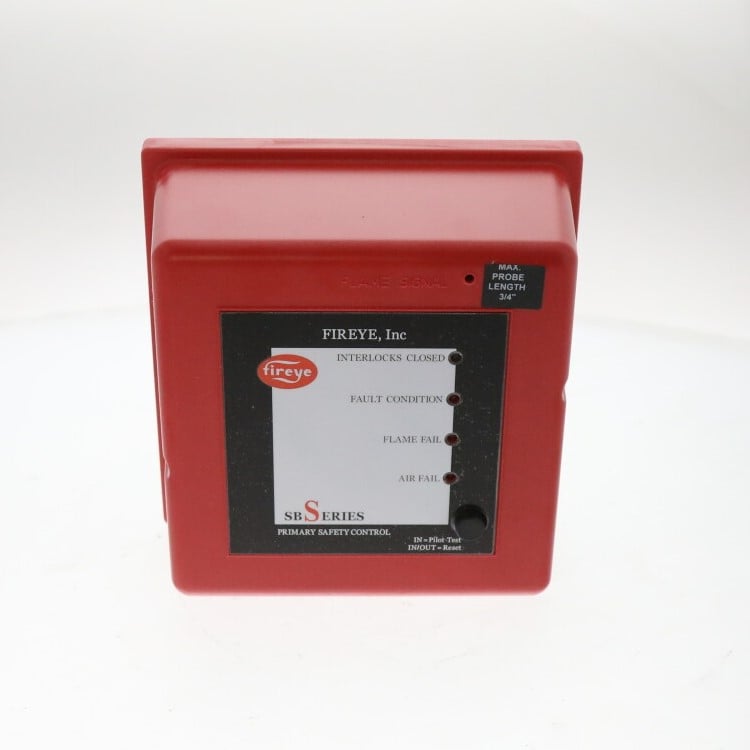

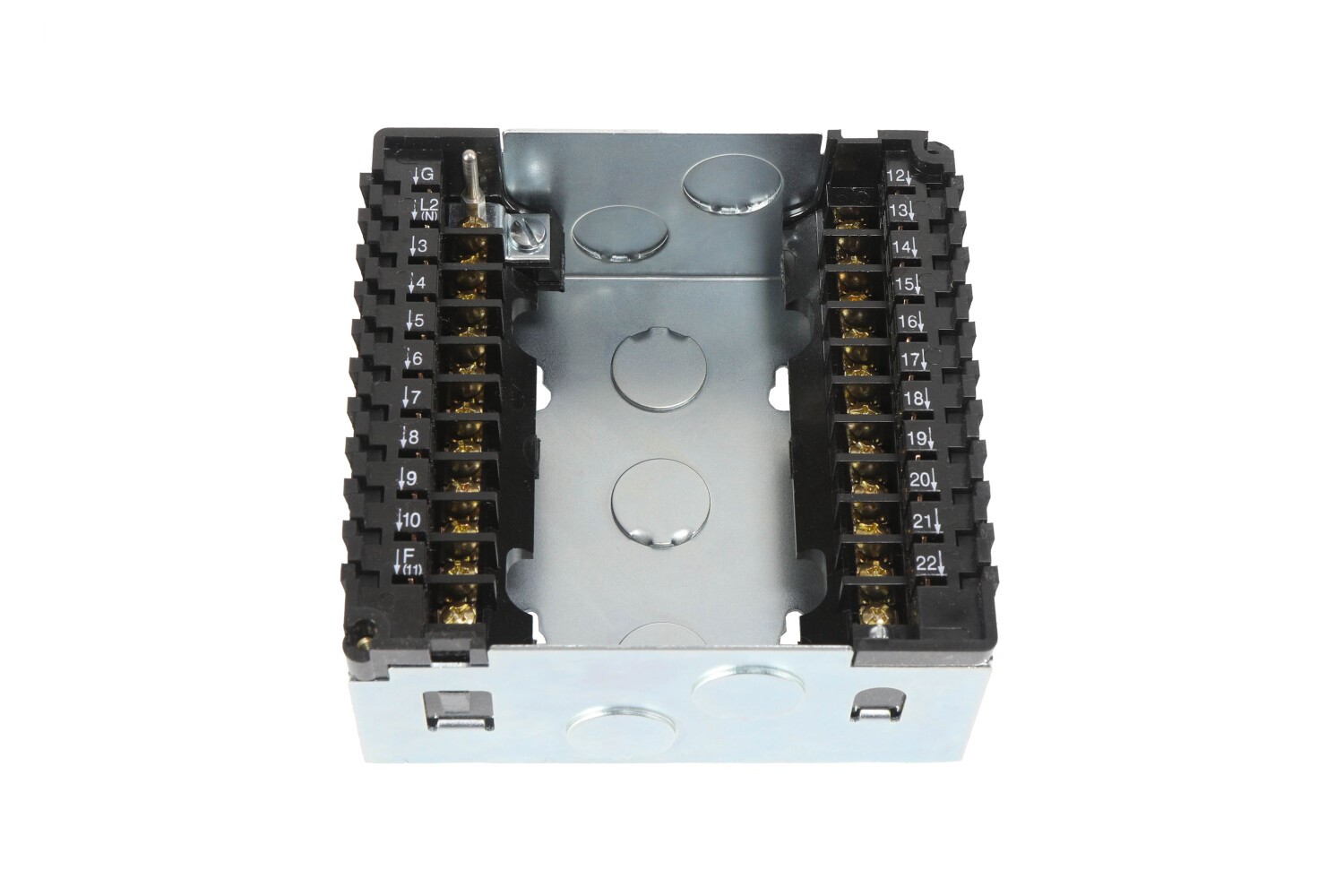

Overview The Fireye SB560222AA is a compact, microprocessor-based, modular burner management system belonging to the SB Series. It is specifically designed to provide automatic ignition and continuous flame monitoring for commercial-sized heating and process equipment. This unit serves as a direct drop-in replacement for the retired Honeywell Eclipse VeriFlame burner control system (VF560222AA), utilizing the same wiring subbase for easy installation and maintenance. Features Modular, plug-in design for ease of service and versatility. Integrated LED indicator lights provide real-time operating and alarm status. Built-in test jack for measuring flame signal intensity (0-10 VDC). Push-button reset for clearing lockout conditions and performing pilot turndown tests. Safety checking circuit operative on each start to detect false flame signals. Complies with EN298 standards and is UL Listed and FM Approved. Specifications Model Number: SB560222AA Power Supply: 120 VAC (102 min to 132 max), 50/60 Hz Power Consumption: 12 VA Control Mode: Purge model Amplifier Type: Ultraviolet (UV) Trial for Ignition (TFI): Jumper selectable 5 or 10 seconds Operating Temperature: -40 degree F to 140 degree F (-40 degree C to 60 degree C) Shipping Weight: Approximately 3 lbs (1.4 kg) Applications The SB560222AA is used in commercial and industrial combustion systems for gas, oil, or combination fuel burners. It is ideally suited for applications requiring a purge cycle before ignition and is compatible with various ultraviolet flame scanners. It provides essential flame safeguard control for boilers, furnaces, and other process heating equipment where reliable, automated burner management is critical.
