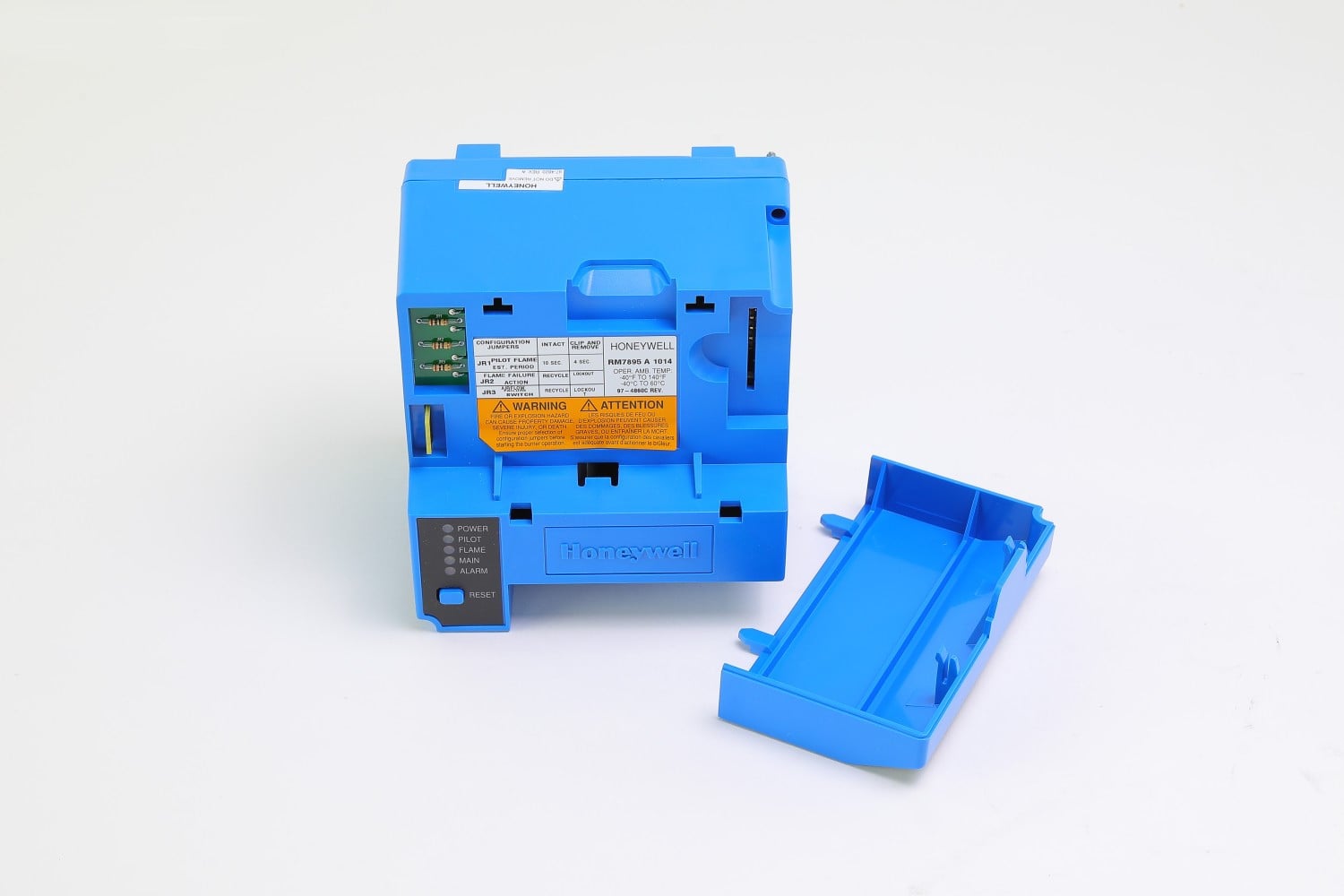

RM7895A1014 Honeywell Burner Control

The Honeywell RM7895A1014 Burner Control 120V, 50/60 HZ. RM7895A1014 Datasheet RM7895A1014 Installation Manual The Honeywell RM7895A1014 is a dependable primary burner control designed for safe, reliable operation of gas-fired boilers and burners. Featuring an on/off control system with built-in pre-purge, intermittent-pilot ignition, and safety interlock functionality, this burner control module ensures secure ignition and efficient shutdown, protecting your system and improving operational safety. Engineered for professional HVAC and boiler applications, the RM7895A1014 is ideal for both new installations and retrofit jobs where reliability and compliance are required. Features OEM Honeywell RM7895A1014 burner control module On/off primary control with pre-purge and intermittent-pilot ignition sequence 120 V AC power supply for mainstream boiler applications Safety monitoring and shut-off on flame failure — enhances system safety Compatible with a wide range of gas valves and pilot assemblies Designed for gas-fired boilers, commercial burners, and hydronic heating systems Durable construction and OEM-grade electronics for long-term reliability Simplifies burner ignition and control — ideal for service or replacement parts Benefits & Applications Ensures safe, controlled ignition and shut-off sequences for boilers and burners Reduces risk of dangerous misfires, gas leaks, or flame failures — critical for safety compliance Suitable for new installations, repiping, or retrofits of existing burners and boiler systems Ideal for commercial and light-industrial HVAC, hydronic heating, and boiler maintenance Trusted by contractors, boiler technicians, and facility maintenance professionals Reliable OEM performance ensures system longevity and reduced maintenance needs Technical Specifications Application On-Off Primary Control with Prepurge Dimensions (in.) 5 in. wide x 5 in. high x 5 1/4 in. deep with Q7800A Subbase x 6 3/32 in. deep with Q7800B Subbase Dimensions (mm) 127 mm wide x 127 mm high x 133 mm deep with Q7800A Subbase x 155 mm deep with Q7800B Subbase Used With 7800 Series Amplifiers Weight (lb) 1 lb 15 oz Weight (kg) 9 kg Frequency 50 Hz; 60 Hz (±10%) Approvals, Underwriters Laboratories Inc. Component Recognized, File No. MP268; Guide No. MCCZ. Approvals, Canadian Standards Association Certified, File No. LR95329-3. Voltage 120 Vac ( 10, -15%) Shipping and Storage Temperature Range (F) -40 F to 140 F Shipping and Storage Temperature Range (C) -40 C to 60 C Approvals, Federal Communications Commission FCC Part 15, Class B, Emissions. Flame Establishing Period – Pilot 4 sec or 10 sec Flame Establishing Period – Main Intermittent Interlocks Selectable PrePurge Determined by ST7800A Purge Timer Card Required Components Q7800A,B Universal Wiring Subbases. R7847, R7848, R7849, R7851, R7852, R7861, or R7886 Flame Signal Amplifier. ST7800A Plug-in Purge Timer Card. Delayed Main Valve No Pilot Type intermittent Vibration 5 G environment Approvals, Control Safety Devices Acceptable: CSD-1 Approvals, Swiss RE Acceptable Approvals, Factory Mutual Report No. OX4A5.AF. Installation & Use Notes Installation must be performed by qualified HVAC or boiler service technicians. Ensure gas supply, venting, and combustion air requirements comply with local codes before installation. Verify proper wiring, grounding, and control voltage (120 V AC) before powering up. After installation, perform ignition and flame monitoring tests to confirm safe operation. Use appropriate upstream gas valves and pilot assemblies compatible with intermittent-pilot control. Schedule regular maintenance checks for safety components and flame sensors to maintain performance and safety. Why Buy from APEX Controls OEM-grade Honeywell burner control — no aftermarket substitutes High reliability and safety — meets rigorous HVAC/boiler standards Perfect for contractors, commercial facilities, and maintenance professionals Suitable for new installations or retrofits of existing gas-fired boilers and burners Long-term supply reliability with trusted parts sourcing
