TASCAM BO-16DX/IN D-Sub to XLR Input Adapter for Professional Installations

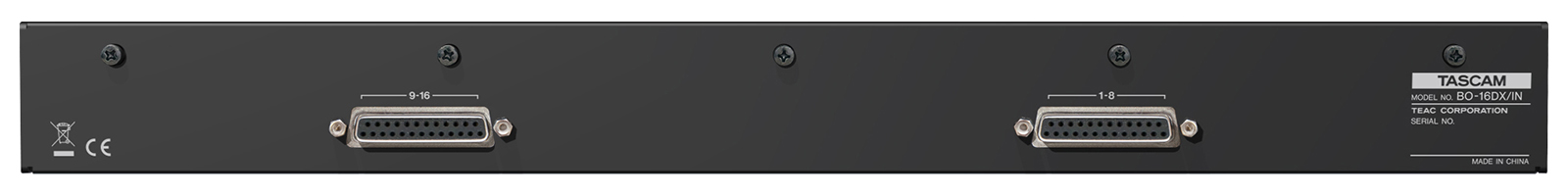

The TASCAM BO-16DX/IN is a rugged, 1U rackmount input breakout adapter designed for professional AV installations, live sound systems, and networked audio workflows. It provides a clean and reliable way to interface 16 balanced XLR inputs on the front panel with dual AES59-2012–compliant D-Sub outputs on the rear—perfect for fast, organised connections between stage boxes, FOH and monitor consoles, audio-over-IP converters, and patch systems. With its compact depth and flexible mounting options, the BO-16DX/IN is ideal for both fixed installations and portable rack systems. Clean XLR to D-Sub Integration The BO-16DX/IN features: 16 front-panel XLR input connectors for microphones or line-level sources Two rear-panel 25-pin D-Sub outputs using TASCAM pin assignments Full compliance with AES59-2012, ensuring compatibility with standard D-Sub looms This makes it an ideal interface between traditional analogue audio connections and modern digital or networked systems. Perfect Companion for Dante & AoIP Systems Designed as a companion to the TASCAM ML-16D and ML-32D Analog-to-Dante converters, the BO-16DX/IN (paired with the BO-16DX/OUT) creates an elegant and service-friendly bridge between analogue audio sources and Dante networks. Typical applications include: Connecting stage inputs to Dante converters Linking FOH and monitor consoles via structured cabling Clean patch-bay style routing in equipment racks Fixed installs in theatres, houses of worship, and corporate AV systems Flexible Rack Mounting Options To simplify rack layout and cable management, the BO-16DX/IN offers multiple mounting configurations: Reversible 180-degree mounting Install facing forward or backward to suit cable flow Removable rack ears Allows tabletop or shelf use when not rackmounted Ultra-short depth Only approx. 45 mm (1.8″) behind the rack ears Can be mounted at the rear of a rack case or used as a front-panel patch bay An allowance of approximately 13 mm clearance above each XLR connector ensures easy access to release levers even when units are stacked closely. Key Features 16 × XLR input connectors on the front panel Dual D-Sub outputs on the rear (AES59-2012 compliant) Uses TASCAM standard D-Sub pinout 1U rackmount design Short chassis depth for flexible rack layouts Multiple mounting orientations (front, rear, or tabletop) Rackmount screws included Specifications Dimensions: 482.6 × 44.1 × 54.5 mm (19.0″ × 1.7″ × 2.1″) Weight: 0.9 kg / 1.99 lbs Rack Size: 1U What’s in the Box BO-16DX/IN × 1 Rackmount screw kit × 1 TASCAM ID registration guide × 1 Owner’s manual (including warranty) × 1 Why Choose the BO-16DX/IN? The BO-16DX/IN is a clean, professional-grade solution for organising and routing multi-channel analogue audio in modern systems. Whether you’re building a Dante-based installation, tidying up rack wiring, or creating a flexible patch interface, it delivers reliability, compatibility, and installer-friendly design in a compact 1U format.
