Q624A1014 Honeywell Transformer

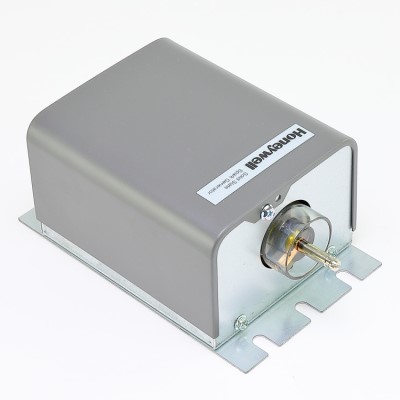

The Honeywell Q624A1014 transformer Overview Used to ignite pilots on commercial or industrial gas burners. Features Ignite gas pilots with spark gaps up to 1/4 in. (6.5 mm). Reliable light off with 15,000 peak voltage. Prevent detection of the ignition spark when properly applied in a flame detection system with the C7027, C7035 or C7044 Minipeeper Ultraviolet Flame Detector. For use only in interrupted ignition applications. Mount in same space used by conventional ignition transformer. Light weight, 3 lbs. (1.4 kg) versus 8-1/2 lbs. (3.9 kg) for standard transformers. Product Specifications Application Gas Ignition Transformer Dimensions (in.) 6 3/4 in. high x 4 1/4 in. wide x 3 in. deep Dimensions (mm) 5 mm high x 108 mm wide x 76 mm deep Temperature Range (F) -40 F to 125 F Weight (lb) 3 lb Weight (kg) 4 kg Frequency 50 Hz; 60 Hz Approvals, Underwriters Laboratories Inc. Component Recognized Approvals, Canadian Standards Association Certified: File No. LR95329 Operating Humidity Range (% RH) 95% RH Voltage 120 Vac Additional information for the Q624A1014 here
