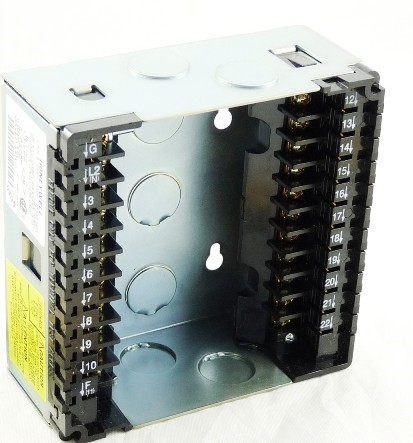

Q7800B1003 Honeywell Terminal Block

Datasheet The Honeywell Q7800B1003 terminal block, 22 TERMINALS, SIDE ACCESS FOR ELECTRICAL VOLTAGE CHECKS. Overview Burner, panel or wall mount subbases for 7800 SERIES relay modules and S7830A Expanded Annunciator. Features Makes electrical connections for 7800 SERIES relay modules or S7830A Expanded Annunciator through bifurcated contacts. Provides terminals for field wiring. Twenty-two terminals. Product Specifications Application Wiring Subbase Dimensions (in.) 4 31/32 in. wide x 4 31/32 in. high x 1 13/32 in deep Dimensions (mm) 126 mm wide x 126 mm high x 36 mm deep Weight (lb) 1 lb 3 oz Weight (kg) 54 kg Comments Burner/wall mount 2 knockouts each end Approvals, Underwriters Laboratories Inc. Component Recognized, File No. MP268; Guide No. MCCZ. Approvals, Canadian Standards Association Certified, File No. LR95329-3. Shipping and Storage Temperature Range (F) -40 F to 140 F Shipping and Storage Temperature Range (C) -40 C to 60 C Vibration 5 G environment
