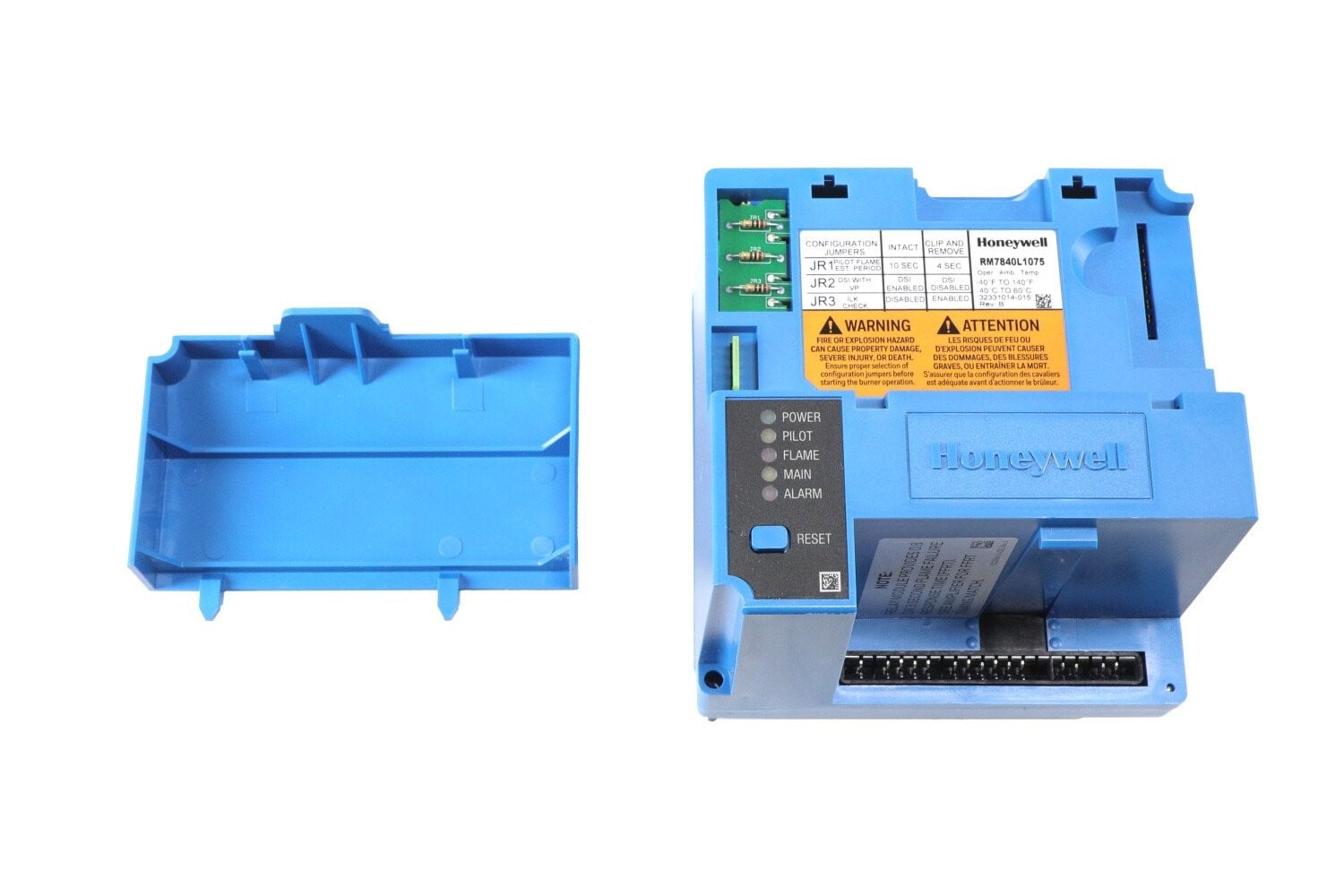

RM7840L1075 Honeywell Programmer Control

UPC: 085267265416 RM7840L1075 Honeywell Programmer Control Datasheet RM7840L1075 Honeywell Programmer Control Installation Manual RM7840L1075 Honeywell Programmer Control The Honeywell RM7480L1075 AUTO PROGRAMMING Control W/MODULATION, MEETS FM & IRI REQ. PROVIDES PREIgnition, LOCKOUT, HIGH & LOW FIRE INTERLOCKS, SELECT PREPURGE TIMINGS, 4 OR 10 SEC PFEP, PREIgnition CHECK DURING POSTPURGE, 5 LEDS, & 5 FUNC. RUN TEST Switch. Overview The Honeywell RM7840L1075 is a microprocessor-based programming burner control from the 7800/7840 Series, engineered for industrial and commercial single-burner applications. It provides precise sequencing, flame supervision, post-purge logic, and built-in self-diagnostics. Designed for dependable operation, this module supports low-fire/high-fire proving and requires a compatible display module for programming and monitoring. This control delivers reliable performance in demanding burner management environments where safety, efficiency, and serviceability are critical. Features Functions include automatic burner sequencing, flame supervision, system status indication, system or self-diagnostics and trouble shooting. Access for external electrical voltage checks. Application flexibility and communication interface capability. Five LEDs provide sequence information. Power LED blinks fault code on Lockout. Five function Run/Test Switch. Interchangeable plug-in flame amplifiers. Local or remote annunciation of operation and fault information (optional). Nonvolatile memory retains history files and lockout status after loss of power. Compatible with existing Honeywell flame detectors. RM7800 Requires S7800A1142 Keyboard Display Module. Keyboard required to setup Valve Proving Feature and change post purge time. Product Specifications Application Programming Control w/VPS Dimensions (in.) 5 in. wide x 5 in. high x 5 1/4 in. deep with Q7800A Subbase x 6 3/32 in. deep with Q7800B Subbase Weight (lb) 1 lb 10 oz Weight (kg) 7 kg Comments Requires S7800A1142 Display, LHL-LF&HF Proven Frequency 50 Hz; 60 Hz (±10%) Approvals, Underwriters Laboratories Inc. Component Recognized, File No. MP268; Guide No. MCCZ. Voltage 120 Vac ( 10, -15%) Shipping and Storage Temperature Range (F) -40 F to 140 F Approvals, Federal Communications Commission FCC Part 15, Class B, Emissions. Flame Establishing Period – Pilot 4 sec or 10 sec Flame Establishing Period – Main 10 sec or 15 sec Interlocks Lockout Preignition Yes PrePurge Determined by ST7800A Purge Timer Card PostPurge programmed with S7800A1142 display Early Spark Termination Yes, 5 sec Required Components Q7800A,B Universal Wiring Subbases. R7847, R7848, R7849, R7851, R7852, R7861, or R7886 Flame Signal Amplifier. ST7800A Plug-in Purge Timer Card. AirFlow Check User selectable Second Stage Pilot Valve selectable Pilot Type interrupted Vibration 5 G environment Approvals, Factory Mutual Report No. 1V9AO.AF. Applications The RM7840L1075 is ideal for a wide range of burner management systems and industrial heating applications, including: Industrial and commercial boilers Furnaces and process heating systems Gas, oil, or dual-fuel burner systems High-performance process burners requiring advanced sequencing Retrofit or upgrade projects replacing legacy burner controls Benefits Enhances burner safety with advanced sequencing and purge verification Simplifies troubleshooting using LED indicators and stored fault history Provides flexible configuration options for multiple ignition setups Designed for easy installation, service, and replacement Reliable operation in demanding industrial and commercial environments More Information Additional Components for RM7800 Series
