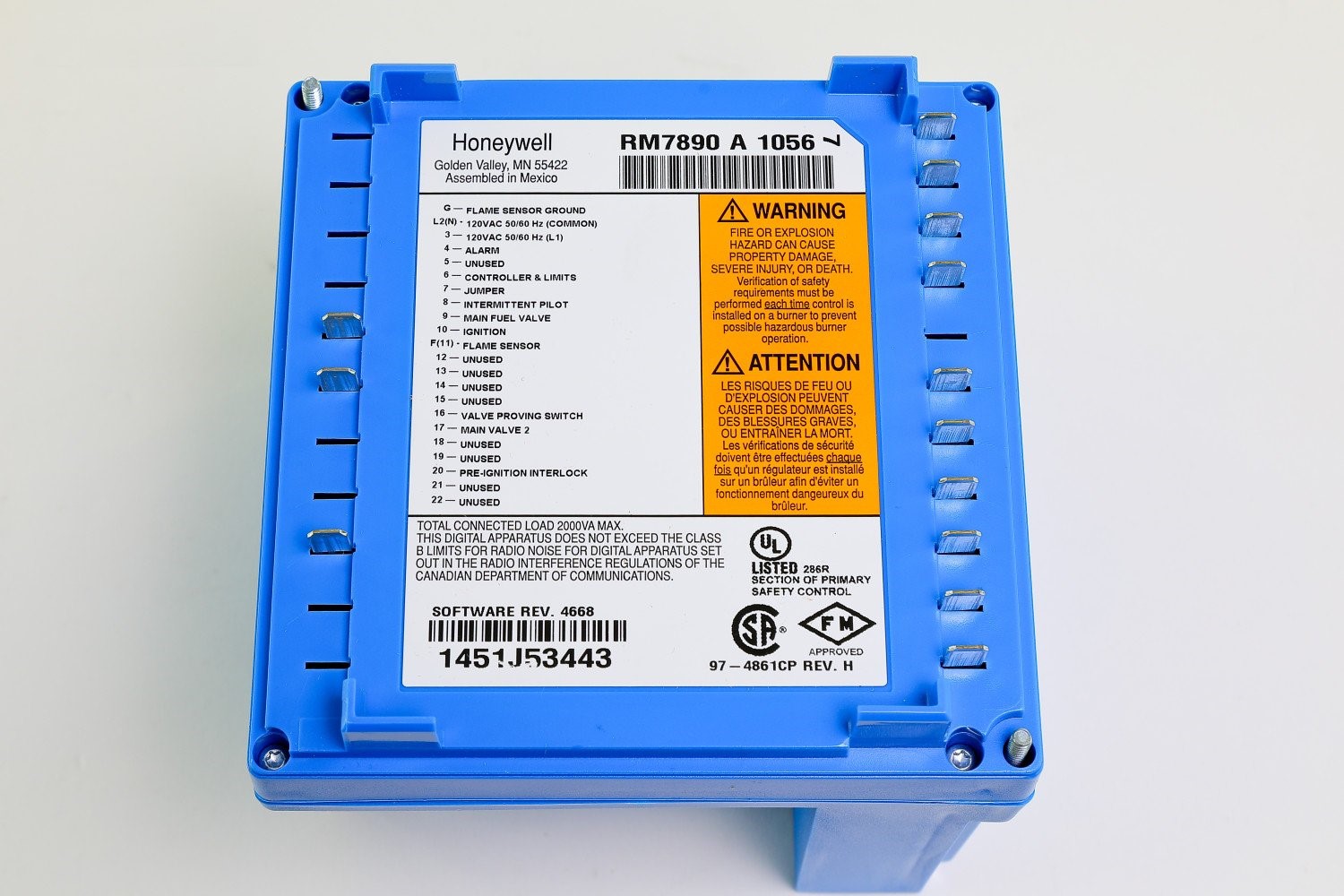

RM7890A1056 Honeywell Burner Control

UPC: 85267253406 The Honeywell RM7890A1056 Microprocessor-based integrated primary burner control for automatically fired gas, oil or combination fuel single burner applications. RM7890A1056 Honeywell Burner Control Datasheet Overview Integrated on/off primary burner control for automatically fired gas, oil or combination fuel single burner applications. Contains Valve Proving Feature. Requires S7800A1142 Display to program VPS feature. Features Functions include automatic burner sequencing, flame supervision, system status indication, system or self diagnostics and troubleshooting. Subbase and amplifier are required for operation. Power LED blinks Fault Code on lockout. Options include PC interface, keyboard display module, DATA CONTROLBUS™ MODULE, remote display module, first-out expanded annunciator, and COMBUSTION SYSTEM MANAGER™ software. Five LEDs provide sequence information. Interchangeable plug-in flame amplifiers. Optional local or remote annunciation of operation and fault information. Nonvolatile memory retains history files and sequencing status after power loss. Optional remote reset capability. Optional report generation. Selectable relight or lockout on loss of flame. Contains Valve Proving Feature – require S7800A1142 Keyboard Display (not provided) to set up. Product Specifications Application On-Off Primary Control w/VPS Dimensions (in.) 5 in. wide x 5 in. high x 5 1/4 in. deep with Q7800A Subbase x 6 3/32 in. deep with Q7800B Subbase Dimensions (mm) 127 mm wide x 127 mm high x 133 mm deep with Q7800A Subbase x 155 mm deep with Q7800B Subbase Weight (lb) 1 lb 13 oz Weight (kg) 0.8 kg Comments Includes programmable VPS (Valve Proving Switch) check feature and blinking LED fault annunciation Frequency 50 Hz; 60 Hz (±10%) Approvals, Underwriters Laboratories Inc. Component Recognized, File No. MP268; Guide No. MCCZ. Approvals, Canadian Standards Association Certified, File No. LR95329-3. Voltage 120 Vac ( 10, -15%) Shipping and Storage Temperature Range (F) -40 F to 140 F Shipping and Storage Temperature Range (C) -40 C to 60 C Approvals, Federal Communications Commission FCC Part 15, Class B, Emissions. Flame Establishing Period – Pilot 4 sec or 10 sec Flame Establishing Period – Main Intermittent Preignition Yes Required Components Q7800A,B Universal Wiring Subbases. R7847, R7848, R7849, R7851, R7852, R7861, or R7886 Flame Signal Amplifier. Pilot Type intermittent Vibration 0.5 G environment Approvals, Swiss RE Acceptable Approvals, Factory Mutual Report No. OX4A5.AF
