Q7800A1005 Honeywell Terminal

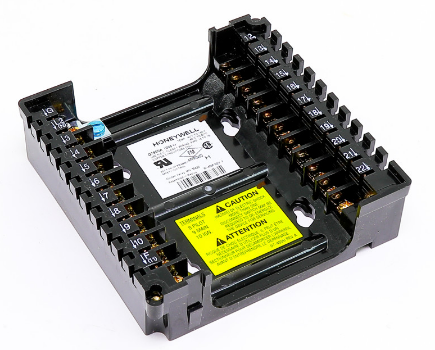

THE  HONEYWELL Q7800A1005. 22 TERMINALS, SIDE ACCESS FOR ELECTRICAL VOLTAGE CHECKS. Q7800A1005 Datasheet The Honeywell Q7800A1005 is a genuine OEM wiring sub-base designed to support 7800-series flame safety and burner control modules. Constructed from high-quality plastic and built to meet safety standards, this terminal base ensures secure, code-compliant wiring for gas-fired burners, boilers, and combustion systems. Use this sub-base when installing or replacing flame control modules to ensure proper wiring, reliable connections, and long-term durability — critical for safe burner operation and compliance with regulations. Whether you’re performing new installations, maintenance, or upgrades on commercial or residential gas-fired systems, the Q7800A1005 base simplifies wiring and helps maintain system reliability and safety. Features OEM Honeywell Q7800A1005 wiring sub-base (plastic terminal base) Designed for use with 7800-series burner/flame safety control modules Secure wiring terminals for reliable electrical connections Durable plastic construction for long-term integrity Ensures safe, code-compliant wiring and mounting for flame control electronics Simplifies installation, replacement, or retrofit of burner control modules Suitable for gas-fired boilers, burners, and combustion systems Benefits / Applications Provides a safe, code-compliant platform for flame safety and burner control wiring Reduces installation time and wiring errors compared to makeshift or generic bases OEM-grade component assures compatibility and system reliability Ideal for new installations, replacements, or retrofits of gas-fired burners, boilers, and combustion safety systems Trusted by HVAC contractors, boiler technicians, and service professionals Helps maintain long-term system performance and safety compliance Technical Specifications Application Wiring Subbase Dimensions (in.) 4 31/32 in. wide x 4 31/32 in. high x 1 13/32 in deep Dimensions (mm) 126 mm wide x 126 mm high x 36 mm deep Weight (lb) 7 oz Weight (kg) 0.20 kg Comments Panel mount Approvals, Underwriters Laboratories Inc. Component Recognized, File No. MP268; Guide No. MCCZ2. Approvals, Canadian Standards Association Certified, File No. LR95329-3. Shipping and Storage Temperature Range (F) -40 F to 140 F Shipping and Storage Temperature Range (C) -40 C to 60 C Vibration 0.5 G environment Installation & Use Notes Use only with compatible 7800-series burner/flame safety control modules. Mount sub-base firmly before wiring to ensure stable electrical connection. Follow all applicable electrical and building codes for gas burner systems. Ensure proper wire sizing, grounding, and secure terminal connections. Perform a burner control test after installation to verify correct wiring, ignition, and safety shutoff operation. Why Buy from APEX Controls OEM-grade Honeywell wiring sub-base — no aftermarket substitutes Reliable parts sourcing for HVAC, boiler, and combustion system professionals Ideal for new installations, maintenance, and retrofit jobs in commercial or residential systems Long-term supply availability and support for building contractors and facility managers Trusted by industry professionals for code-compliant, high-quality components
