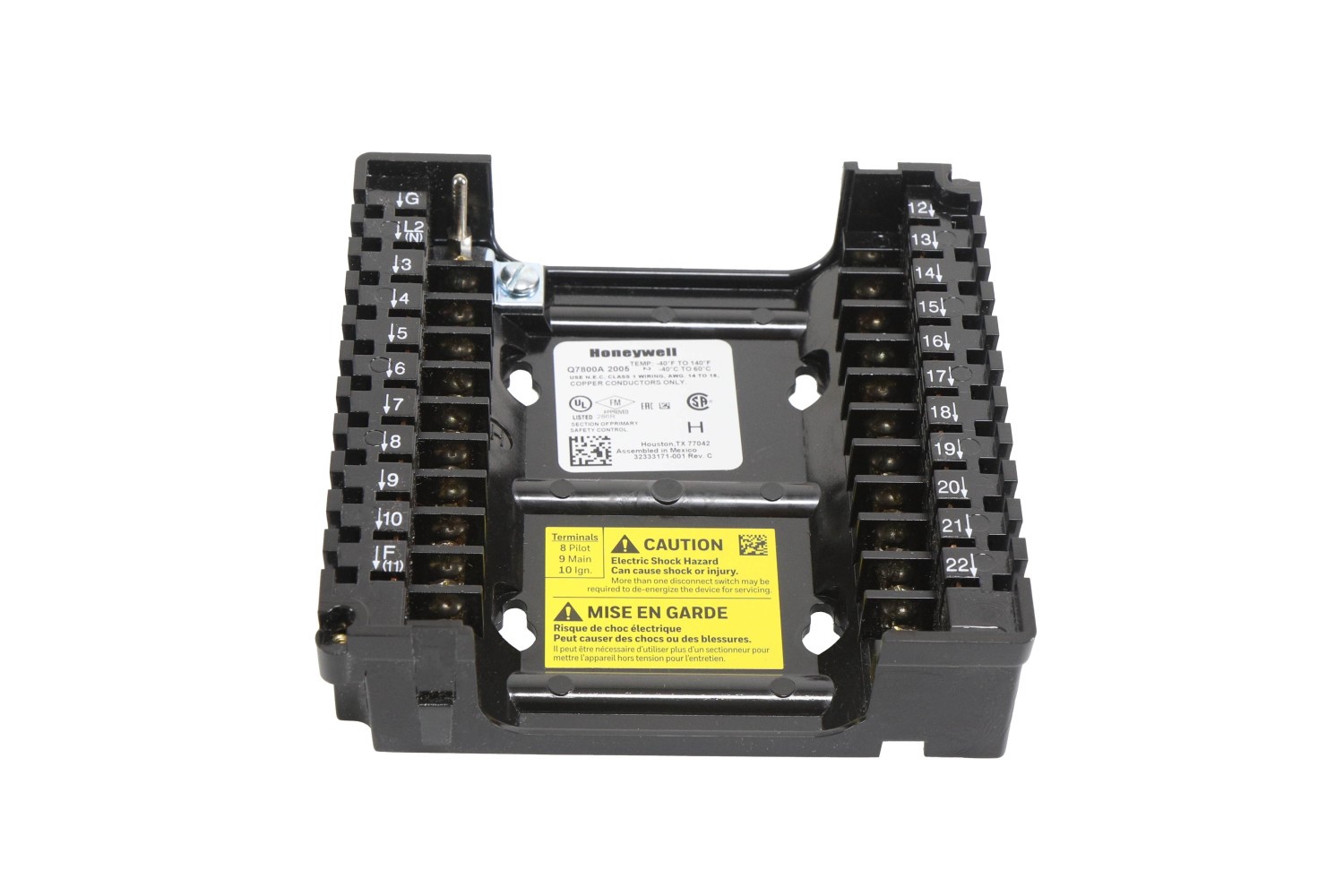

Q7800A2005 Honeywell Wiring Base

Datasheet Overview Burner, panel or wall mount subbases for 7800 SERIES relay modules and S7830A Expanded Annunciator. Features Makes electrical connections for 7800 SERIES relay modules or S7830A Expanded Annunciator through bifurcated contacts. Provides terminals for field wiring. Twenty-two terminals. Product Specifications Application Wiring Subbase Dimensions (in.) 4 31/32 in. wide x 4 31/32 in. high x 1 13/32 in deep Dimensions (mm) 126 mm wide x 126 mm high x 36 mm deep Used With RM/EC7800 Flame Relay Weight (lb) 7 oz Weight (kg) 0.20 kg Comments Panel mount Approvals, Underwriters Laboratories Inc. Component Recognized, File No. MP268; Guide No. MCCZ2. Approvals, Canadian Standards Association Certified, File No. LR95329-3. Shipping and Storage Temperature Range (F) -40 F to 140 F Shipping and Storage Temperature Range (C) -40 C to 60 C Vibration 0.5 G environment European Directives EN60730 Enclosure Rating NEMA 1 Weight (oz) 7
