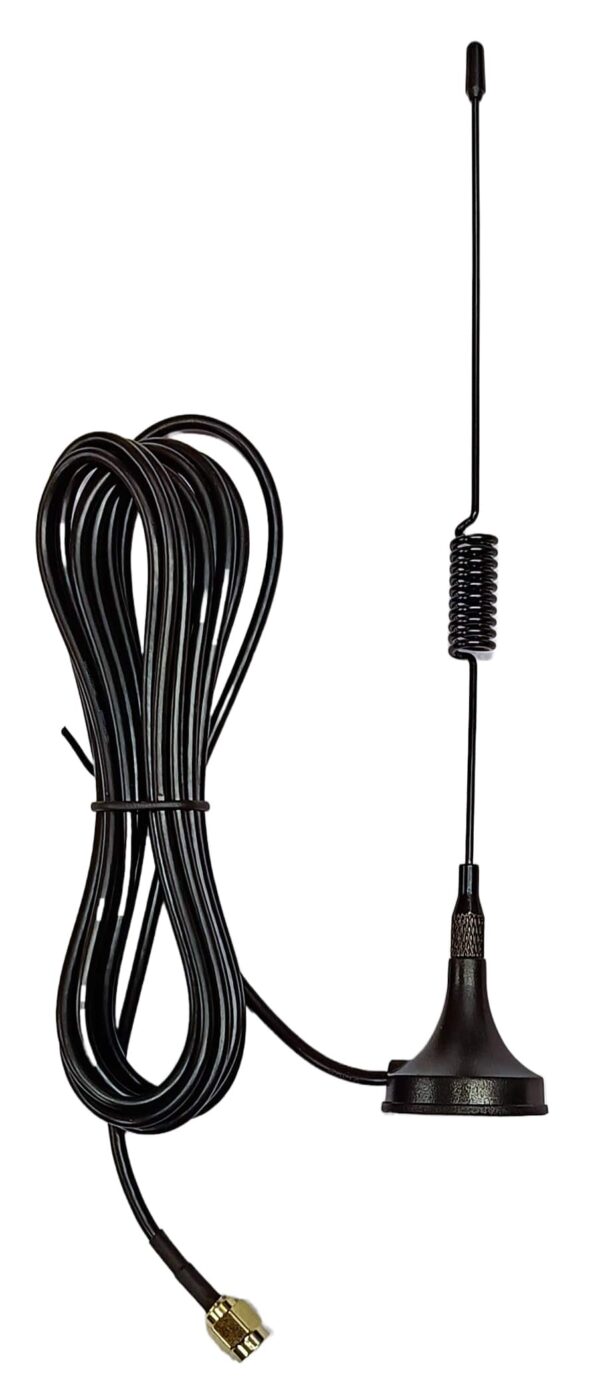

Boost your GSM signal with the AN-88-D Magnetic Mount Spring Antenna. Designed for communication systems operating on GSM/GPRS 900/1800MHz, this compact and high-performance antenna delivers 3dBi gain for enhanced reception and transmission. Built with a durable magnetic base and spring design, it offers easy installation on any metallic surface, ensuring stable connectivity for your critical GSM applications. The AN-88-D antenna is widely used in industrial and commercial GSM-based applications including GSM modems, repeaters, IoT devices, and remote monitoring systems. It features a robust construction for reliable operation in extreme temperatures ranging from -40°C to 60°C. GSM 3DBI Magnetic Mount Spring antenna Electrical Specifications:- Frequency range(MHz) 900-1800 Bandwidth (MHz) 70/170 Gain (dBi) 3 VSWR ≤2.0 Input Impedance(Ω) 50 Polarization Vertical Maximum input power(W) 50 Input connector type SMA Male or Requested GSM 3DBI Magnetic Mount Spring antenna Mechanical Specifications:- Dimensions(mm) 30×200 Antenna weight(g) 50 Mounting way Magnetic adsorption Operating temperature(°c) -40~60 Applications of GSM 3dBi Magnetic Mount Spring Antenna – AN-88-D: GSM/GPRS modems GSM repeater systems Remote monitoring & telemetry IoT devices using GSM networks GSM sensors and controllers M2M communication modules Vehicle tracking systems Wireless alarm systems Category: GPS Module and Antenna
