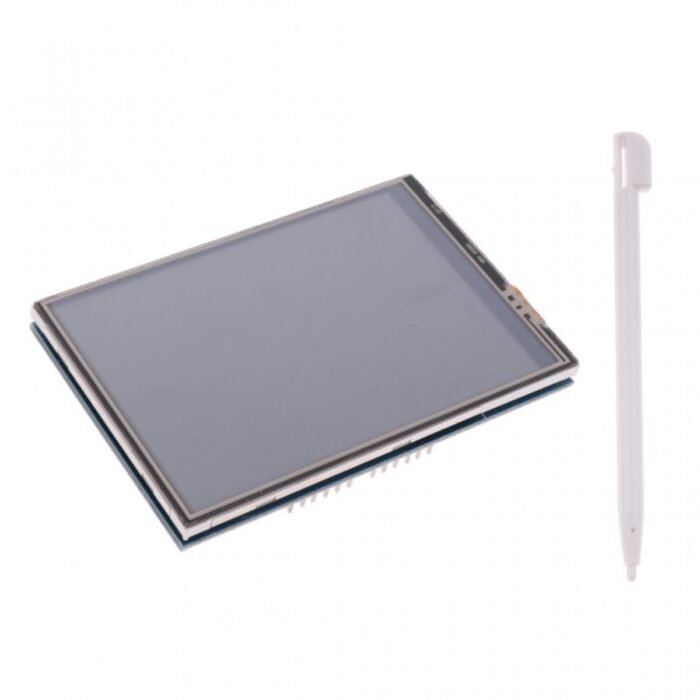

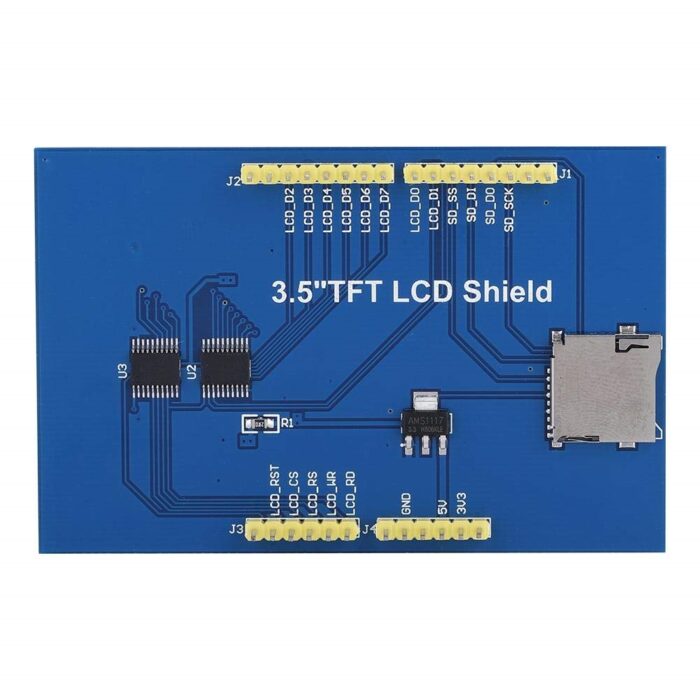

Features of 3.5 inch TFT LCD Touch Screen Display Shield for Arduino Uno:- Resistive touch screen TFT LCD, 3.5inch, 480×320 resolution Standard Arduino interface, compatible with development boards like Arduino UNO, Leonardo, UNO PLUS, NUCLEO, XNUCLEO Onboard stand-alone touch controller, better touching than solutions that use AD pins directly for touch control PWM backlight control allows adjusting the backlight to a comfortable level Micro SD slot, provides an easy way to store photos for displaying Controlled via SPI, only a few Arduino pins are used Comes with STM32 and Arduino examples, convenient for porting Key Parameters of 3.5 inch TFT LCD Touch Screen Display Shield for Arduino Uno:- LCD Type: TFT LCD Interface: SPI LCD Controller: ILI9486 Touch Screen Type: Resistive Touch Screen Controller: XPT2046 Colors: RGB, 65K colors Resolution: 480×320 (Pixel) Aspect Ratio: 8:5 I/O Voltage: 3.3V/5V
