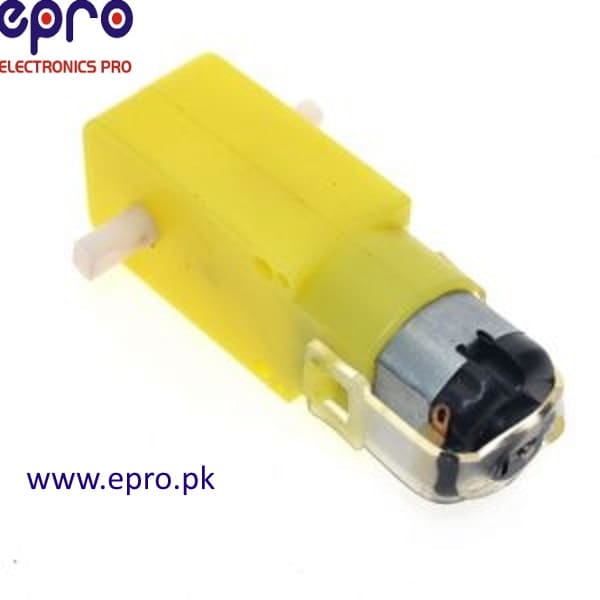

This gear motor is perfect for your next robotics project. This gear motor is ideal for robotic car or line-tracing robot. With plastic construction and colored in bright yellow, the DC gear motor measures approx. 2.5 inch long, 0.85 inch wide and 0.7 inch thick. The wheel can be mounted on either side and the Gearmotor works well between 4V to 7V (recommended 6 Volts). At a ratio of 1:48 you can get some really good torque at 5 Volts. SPECIFICATIONS OF DC Gear Motor: Voltage (Range): 3Volt Current (Stall): 100mA Speed: 125RPM Torque: 0.8kg.cm Gearmotor Style: Hobby Gear Material: Plastic Gearbox Ratio: 48:1 Encoder: No EXTRA SPECIFICATIONS Voltage: 3V RPM: 125r / minute Current: 80 – 100mA Reduction: 48:1 Output Torque: 0.8kg.cm Brush-type: Brush FEATURES: DIY Projects Battery-operated toys Disk drives Steel rolling mills Paper Machines Medical equipment Radio-controlled aircraft Automobiles Drive systems Positioning Industrial and consumer actuators Winches Robotics Mixers Robotic projects Dimensions 70x22x18mm Shaft Size: 8mm x 5.4mm diameter Weight: 17gr Operating voltage: 3V ~ 6V DC Maximum torque: 800gf cm min (3V time) Reduction Ratio: 1:48 (3V time) Rotate Speed: 125rpm/min Tire Diameter: about 66mm Tire Thickness: about 28mm Load Current: 70mA (250mA MAX) (3V time) This motor plus EMC, anti-interference ability. Microcontroller without interference Package Included: 1 X TT motor
